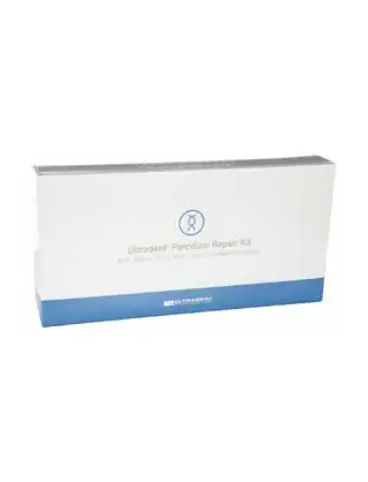

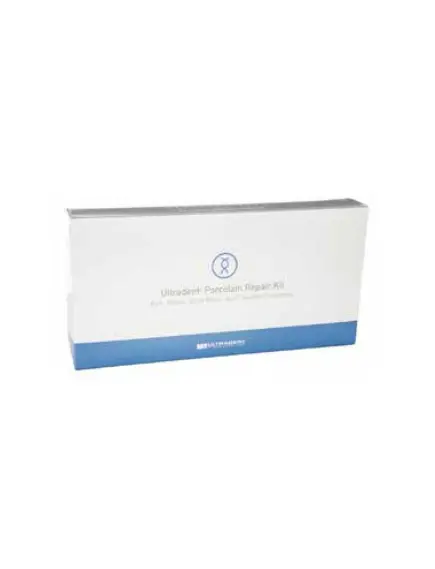

Ultradent Porcelain Repair Kit

1 x 1,2 ml (2,30 g) PermaFlo Dentin Opaquer syringe

1 x 1,2 ml (1,39 g) EtchArrest syringe

1 x 1,2 ml (1,34 g) OpalDam syringe

1 x 1,2 ml (1,24 g) Peak Universal Bond syringe

1 x 1,2 ml (1,33 g) Porcelain Etch syringe

1 x 1,2 ml (0,96 g) Ultradent Silane syringe

20 x Black Mini Brush Tips

20 x Black Micro Tips

20 x Micro 20 ga Tips

20 x Inspiral Brush Tips

• Includes all necessary precomposite-placement materials

• Yields high bond strengths

• Provides quick, easy repairs without mixing

Porcelain repair procedures are becoming more common. It is financially advantageous and less invasive to repair a chipped porcelain restoration rather than replace it. The Ultradent Porcelain Repair Kit contains all the products and tips needed for composite-to-porcelain, porcelainto-metal, and porcelain-to-porcelain repairs.

Note: This Quick Guide is meant only to provide an overview; it is not a substitute for instructions provided with individual products. Please carefully read instructions and warnings delivered with products before using them.

Place rubber dam if necessary, and/or cover surrounding teeth and gingival tissue with OpalDam™ light-cured resin barrier using a Black Mini™ tip. Light cure 10 seconds on standard mode with VALO™ curing light. For curing lights with output <600 mW/cm2
, cure 20 seconds.

Roughen ceramic and/or metal surfaces to be repaired using a microabrasion system with 50 µm aluminum oxide particles for at least 60 seconds. Alternatively (although less effective), use a diamond bur.

Use a Black Micro™ tip to place EtchArrest™ neutralizer like a frame around the broken porcelain surface

Apply Porcelain Etch with an Inspiral™ Brush tip onto the broken porcelain surface

Etch surface for 90 seconds; then suction off gel and carefully rinse with water spray. Option: Blend EtchArrest™ neutralizer into etchant until the yellow color of etchant is no longer identifiable. This will neutralize the etchant and eliminate risk of acid splashes when removing the neutralized mix

Apply Ultra-Etch etchant for 5 seconds to remove salts

Rinse and thoroughly air dry fractured surface.

Apply Silane onto broken porcelain surface with a Black Mini Brush tip. Use Peak-ZM on metal and zirconia surfaces.

Let evaporate for 1 minute, and blow with a gentle stream of air until completely dry

Apply Peak™ Universal Bond adhesive with an Inspiral Brush tip onto fractured surfaces. Air thin gently but thoroughly.

Light cure Peak Universal Bond adhesive for 10 seconds with a VALO LED curing light. For curing lights with output <600 mW/cm2
, cure 20 seconds.

Cover exposed metal with a thin layer of PermaFlo™ Dentin Opaquer using a Micro 20 ga tip, then light cure for 10 seconds with VALO LED curing light. For curing lights with output <600 mW/cm2
, cure 20 seconds.

Restore fracture by layering light-cured composite.

Finish and polish repaired area
