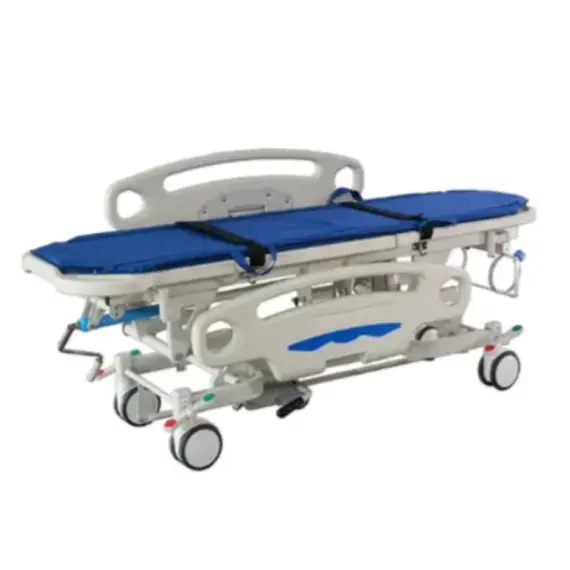

Emergency bed ET07

Comfortable first aid and full functionality

Specifications: Length 1930 mm, Width 670 mm

Lifting height: 510-850 mm

Back lift: 0-70 degrees

Safe working load: 170 kg

Bed slat: Polyethylene resin

Frame: Steel products

Basic skills:

1. Specifications: Full length 1930 mm, Full width 670 mm, Lifting height 510-850 mm, Back lift 0-70 degrees.

2. Safe working load: 170 kg

3. Rear lifting system: The rear lifting is controlled by a silent gas spring.

4. Height adjustment: Vibrating system made of metal material, overload protection function, not easy to break.

5. Bed board: Polyethylene resin casting products.

6. Frame: Made of welded steel products.

※7. Protective barrier panel: The protective barrier panel is made of polyethylene resin cast on both sides, the height of the protective barrier is ≥ 360 mm, the effective protection height is ≥ 260 mm, making patients safer. The protective barrier is fixed to two iron plates that are welded vertically to the bed with graduated screws to ensure smoothness and better activity intensity.

※8. The protective barrier is based on a new safety barrier design. The barrier's buckle is secured with a 9mm thick lock. When the barrier is under pressure, it cannot be opened. The barrier can be opened from the outside in, thus effectively preventing the patient from entering. Improper operation can lead to bed falls, making it safer.

※9. There are three round openings on the protective barrier panel, making it convenient for medical personnel to operate from all angles and monitor the patient. A protective barrier thickness ≥ 43 mm provides better grip and higher strength.

※10. Wheels: Double-sided anti-roll wheels with a central locking system prevent hair and other objects from entering the wheels and causing malfunctions. Internal steel supports, a double-bearing cylinder structure, high load capacity, and strong resistance to impact and lateral forces. Four 150mm diameter wheels are included. The trolley's four corners are equipped with a wheel control system. A single foot brake engages and all four wheels are locked simultaneously.

11. The center control brake linkage bar is made of an integrated round tube to ensure higher strength.

※12. Independent central fifth wheel system: The control pedals are mounted on both sides of the vehicle, and the central fifth wheel can move freely when pulled.

13. Tray: A two-stage, injection-molded tray is located under the bed. The tray is divided into two sections of different sizes and depths. It is equipped with six drainage holes and is easy to use. The tray can support up to 10 kg.

※14. Infusion holder storage rack, the bottom of the back panel is equipped with an infusion holder storage rack, which can be fixed and stored when not in use. There is a plastic sleeve in the infusion holder storage rack to prevent the infusion holder from being bumped and shaken.

※15. Oxygen bottle rack, up to 7 liters of oxygen cylinders can be placed horizontally on the underside of the bed, and it has two handles for fixing.

16. Transport mattress: The mattress has a three-stage structure, the fabric surface is waterproof and easy to clean, and the four corners are equipped with zippers;

※17. There are four stainless steel metal hooks on the side of the bed, which are fixed with stainless steel rivet screws, which have better strength and a more beautiful appearance.

※18. The bed frame is vertically welded with a 30*60*1.5 mm U-shaped square tube, with better strength and stable construction.

19. Infusion Holder Socket: The infusion holder sockets are located around the bed. They can be rotated to position the infusion holder when in use and can be rotated and stored under the bed when not in use. A plastic sleeve is included in the infusion holder socket to prevent impacts. It is aesthetically pleasing and easy to use.

Configuration list:

1. Single bed frame;

2. Two integrated railings;
