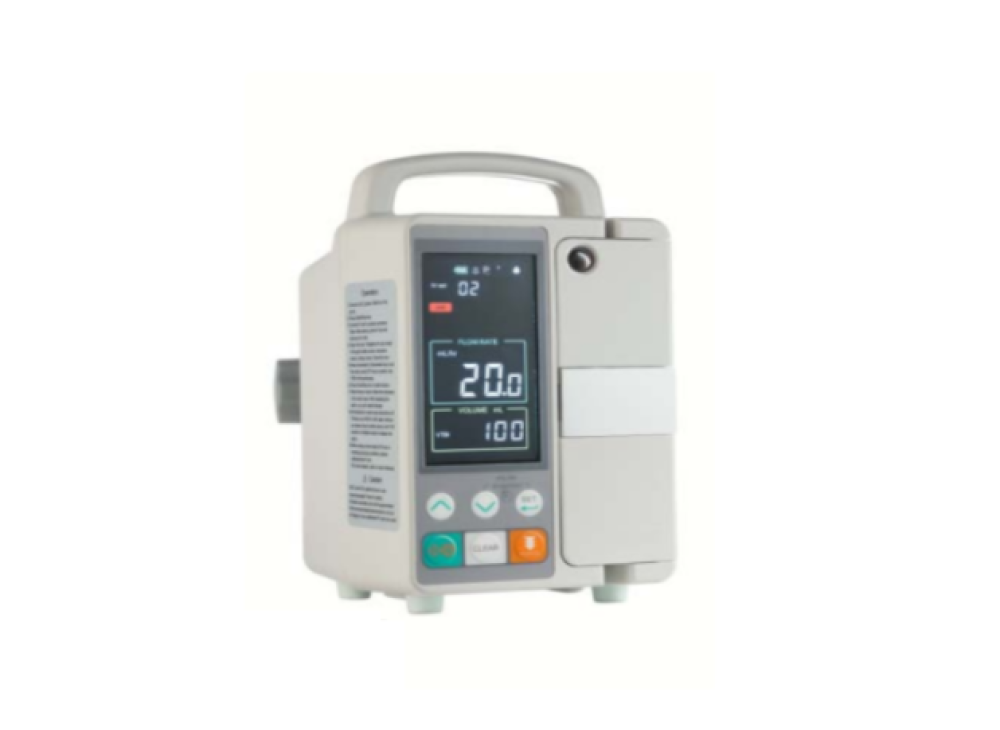

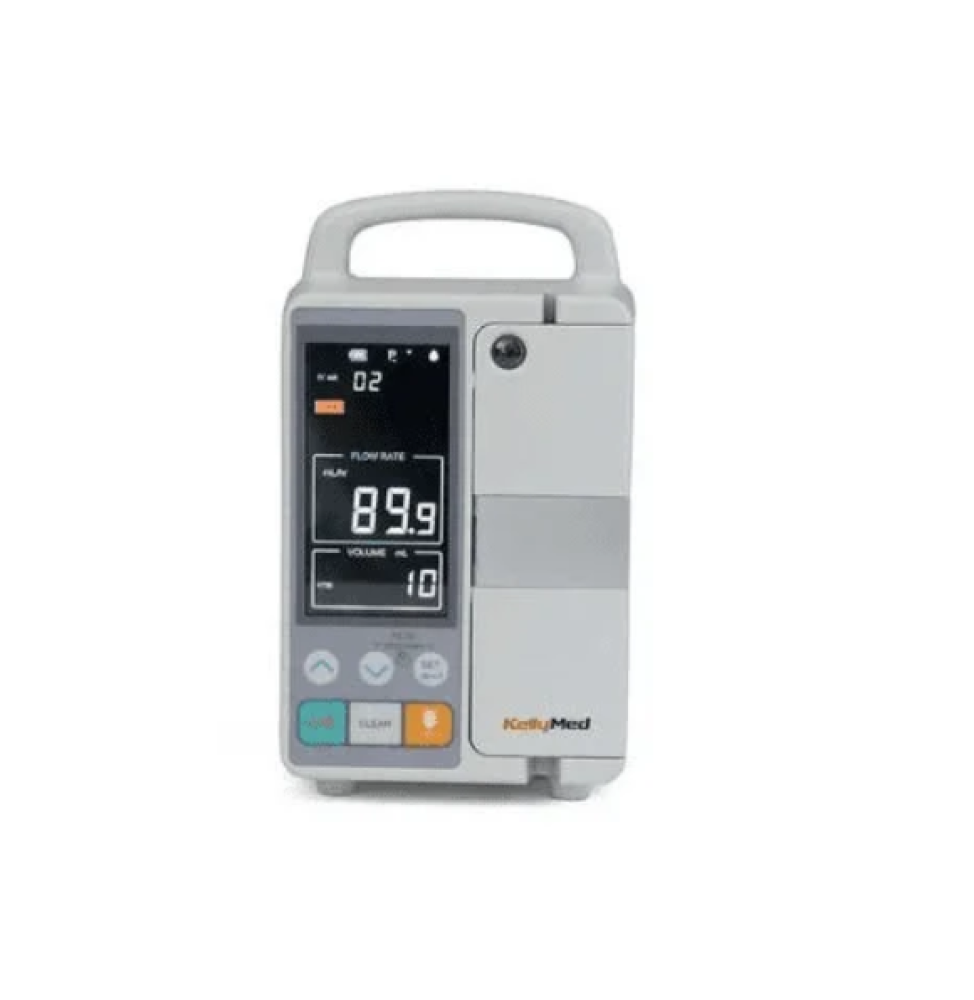

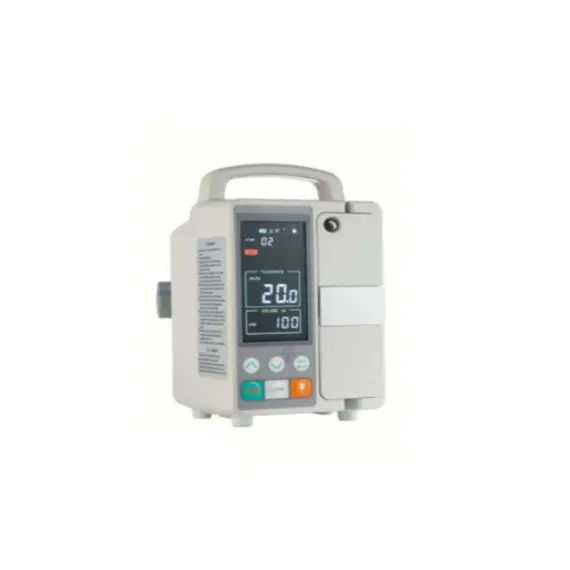

Infusion pump (open system)

1. Built-in thermostat: Adjustable between 30°C and 45°C.

The thermostat warms the IV tubing for more accurate infusion.

This is a unique feature compared to competitors.

2. Suitable for adults, children, and the neonatal intensive care unit.

3. Free flow prevention feature for safer infusions.

4. Real-time display of infusion volume/dose rate/volume/kVO2.

5. 9 visual alerts on the screen.

6. Change flow rate without stopping the pump.

Specifications

Pumping Mechanism: Curved Peristaltic

IV Infusion Set, compatible with any standard IV infusion set

Flow Rate: 0.1-1500 mL/hr (in 0.1 mL/hr increments)

Discharge/Dose: 100-1500 mL/hr (in 1 mL/hr increments)

Discharge when pump is off, Dose when pump is on

Dose Volume: 1-20 mL (in 1 mL increments)

Accuracy: ±3%

*Built-in Thermostat: 30-45°C, adjustable

VTBI: 1-9999 mL

Infusion Mode: mL/hr, drops/min, timer

KVO Rate: 0.1-5 mL/hr (in 0.1 mL/hr increments)

Alarms: Blockage, Air Ingress, Door Open, Program Termination, Low Battery, Battery Depletion, AC Power Off, Fault Motor, System Fault, Alarm Reminder

Additional Features: Instant Injection Volume/Dosage Rate/Dose Volume/KVO Rate

Automatic Power Switch, Mute Switch, Discharge, Dosing, System Memory

Key Lock, Change Flow Rate Without Stopping the Pump

Obstruction Sensitivity: High, Medium, Low

In-Line Air Detection: Ultrasonic Detector

Wireless Management (Optional)

Power Supply: AC 110/230V (Optional), 50-60Hz, 20VA

Rechargeable Battery 9.6±1.6V

Battery Life: 5 hours at 30 ml/h

Operating Temperature: 10-40°C

Relative Humidity: 30-75%

Atmospheric Pressure: 700-1060 hPa

Dimensions: 174 x 126 x 215 mm

Weight: 2.5 kg

Safety Classification: Class 1, Type CF
