Trilogy Evo portable ventilator

Specifications of the Philips Evo portable ventilator:

• A high-quality, specialized portable ventilator equipped with numerous advanced features designed for patient comfort.
• The device assists the user in breathing effectively (automatically or via a tracheostomy) using ambient air, whether in the bedroom or while outdoors.
• Designed with a simplified interface, an easy-to-understand alert system, and a clear, straightforward display, the Evo device is ideal for home use, as well as for use in hospitals and intensive care units.
• The Evo device is suitable for all age groups, from infants to the elderly, and for all health conditions.

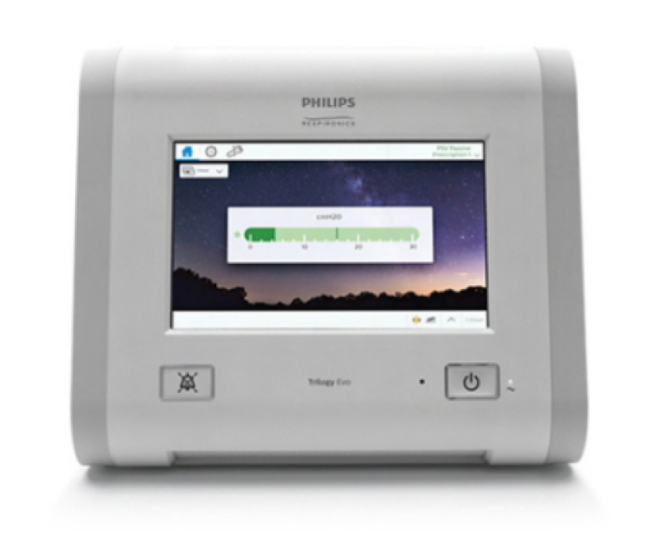

• The front of the device features a high-resolution, responsive 8-inch (20 cm) touchscreen display.
• The screen displays user data, operating system details, battery charge status, treatment duration, airflow status, and other controllable data.
• The user or healthcare provider controls the patient's respiratory prescription details from the treating physician and can precisely adjust the operating system, pumping rate, inspiratory and expiratory air pressure, and other treatment parameters.

The Evo device operates through four air extension programs.:

1. Passive Circuit: No-pressure air flow
2. Active Flow Circuit: Air flow with pressure
3. ActivePAP Circuit: Two-stage air flow
4. Dual Limb Circuit: Two-stage air flow

The air inlet is located at the back of the device and is covered by a foam filter that purifies the air of dust and allergens.

The foam filter is removable, washable, and reusable after it dries completely.

The device operates on multiple power sources:

Power is supplied via a fixed wall outlet.

It features a removable external battery and an internal battery.

• When the device is connected to a power source, it automatically powers on and charges the batteries.
• The removable external battery and the fully charged internal battery provide up to 15 hours of operation.
• The batteries are fully charged in 3.5 hours.
• The device primarily relies on a mains power supply, with the internal battery serving as an emergency power source.
• The Evo breathing device can be connected to a blood oxygen saturation and heart rate monitor, and the readings are displayed on the side of the device's screen.
• A USB drive can be connected to the Evo device for data transfer or operating system updates.

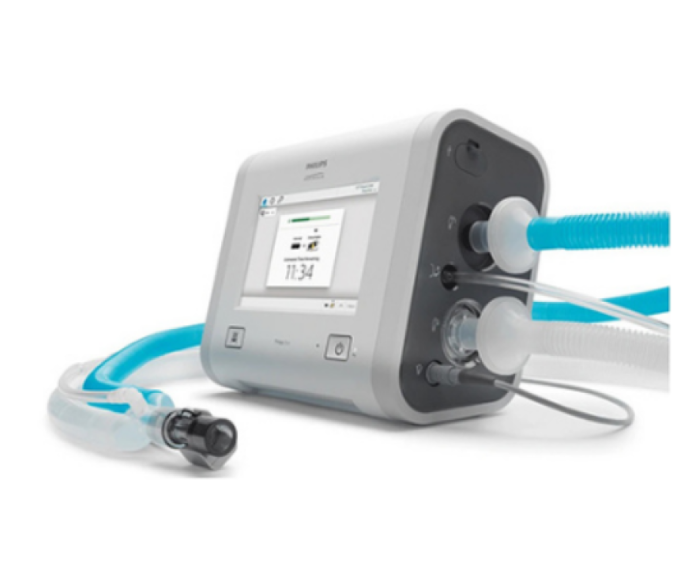

• Air tubing is connected to the side of the device, and a bacterial filter can be installed between the device and the air tubing.
• The top of the device features a sturdy handle, allowing the user to carry it practically and comfortably.
• Dimensions of the ventilator: 16.5 x 28.6 x 24.5 cm.
• Weight of the device: 5.2 kg.
• Brand: Philips.
